Tin ore beneficiation process flow

Tin ore beneficiation process flowComplete equipment configuration

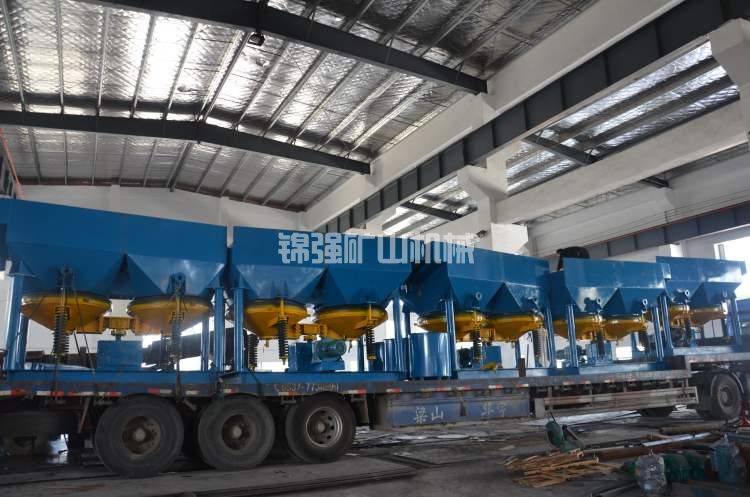

Crushers, ball mills, spiral classifiers, hydrocyclones, vibrating screens, jigs, shakers, flotation machines, drying machines, etc

Tin ore beneficiation process flow Device image

Tin ore beneficiation process flow introduce

1、 What are the beneficiation methods for tin ore

The beneficiation method of tin ore usually adopts gravity separation method, which is determined by the density of tin ore compared to symbiotic minerals. However, tin ore is often associated with iron oxide minerals such as Magnetite and Hematite, so it is impossible to completely separate tin ore by gravity concentration alone. So magnetic separation and flotation methods are also used for the beneficiation of tin ore.

2、 Tin ore beneficiation process flow

The process flow of tin ore beneficiation is roughly divided into four stages: crushing, grinding, flotation, and drying. Each stage is properly connected, and the configuration of tin ore beneficiation technology and equipment is reasonable, making the entire process smoother and more convenient to operate.

1. Crushing stage

The properties of tin ore are relatively simple, and good results can be achieved by simply crushing it in one step with a jaw crusher. After crushing, the tin ore particles have uniform size, beautiful particle shape, and no over crushing, providing high-quality raw materials for the next step, reducing the load of grinding equipment, and having a good promoting effect on improving the grade of tin concentrate.

2. Grinding stage

The grinding stage of tin ore is to evenly feed the crushed material into a ball mill and grind it into powder form, with the aim of achieving full dissociation of tin minerals from other minerals. At this stage, it is necessary to use a spiral classifier to reasonably classify the ground materials, and only qualified materials that meet the conditions can enter the next stage; On the contrary, it will be sent back to the crusher to continue crushing, and so on in a cyclic manner. The entire grinding process consumes relatively low energy and has a good operating effect.

3. Flotation stage

Flotation is a key link in the entire tin ore beneficiation technology. It uses a dedicated tin ore flotation machine designed by Jinqiang Mining, which has higher sorting accuracy, more convenient operation, less drug consumption and waste, and no environmental pollution. The ground tin ore powder first enters the stirring drum and is thoroughly stirred to form a slurry. Then, it is sent to the flotation machine and corresponding flotation agents are added to fully react to obtain tin concentrate.

4. Drying stage

The tin concentrate after flotation will contain a large amount of water, which needs to be dehydrated and dried by a dryer to better improve the grade of the tin concentrate.

3、 Tin ore beneficiation equipment

1. Eosine crusher: Eosine crusher is a crushing equipment in tin ore beneficiation technology equipment.

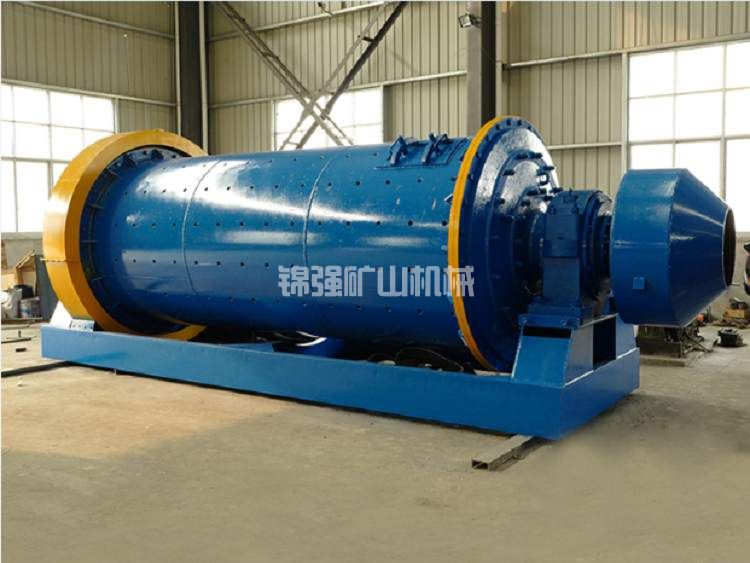

2. Ball mill: Ball mill is a grinding equipment in tin ore beneficiation technology equipment.

3. Spiral classifier: Spiral classifier is a classification equipment in tin ore beneficiation technology equipment.

4. Flotation machine: Flotation machine is one of the important equipment in tin ore beneficiation technology equipment.

5. Drying machine: The drying machine is a drying equipment in the tin ore beneficiation technology equipment.

4、 Characteristics of Tin Ore Dressing Production Line

1. The entire tin ore beneficiation process is about 3% -10% cheaper in price, and the spatial layout is scientific and compact, reducing infrastructure area and effectively reducing investment costs of over 250000 yuan;

2. Fully respond to the country" Energy conservation and emission reduction; Call for more stable operation, less noise, and less pollution;

3. Low failure rate, large processing capacity, high degree of automation, and more convenient operation;

4. The flotation effect is good, and the grade of tin concentrate is increased by 30%, fully realizing the comprehensive utilization of resources, which has significant economic and social benefits.
