Composite crusher

Composite crusher Equipment and materials

Feed particle size：≤30mm

Equipment processing capacity：5-100t/h

Production materials：Iron ore sand, slate, hydrated gypsum, high coal ash, coal gangue bricks, lump coal, etc

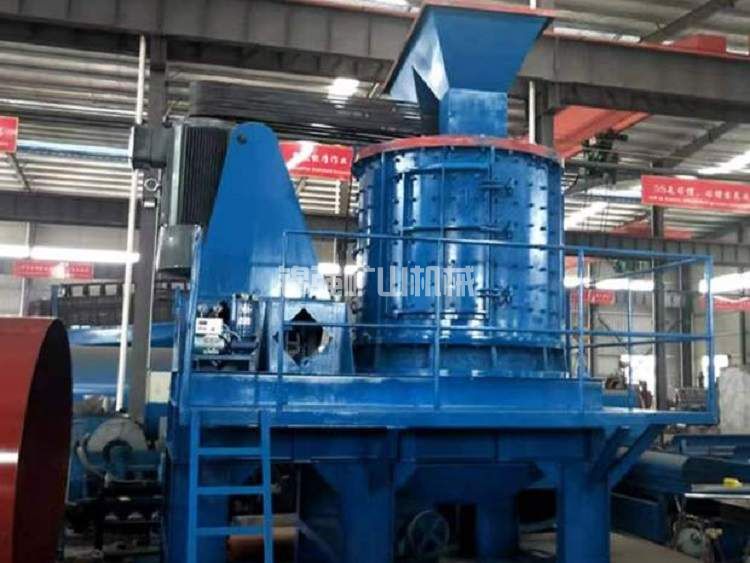

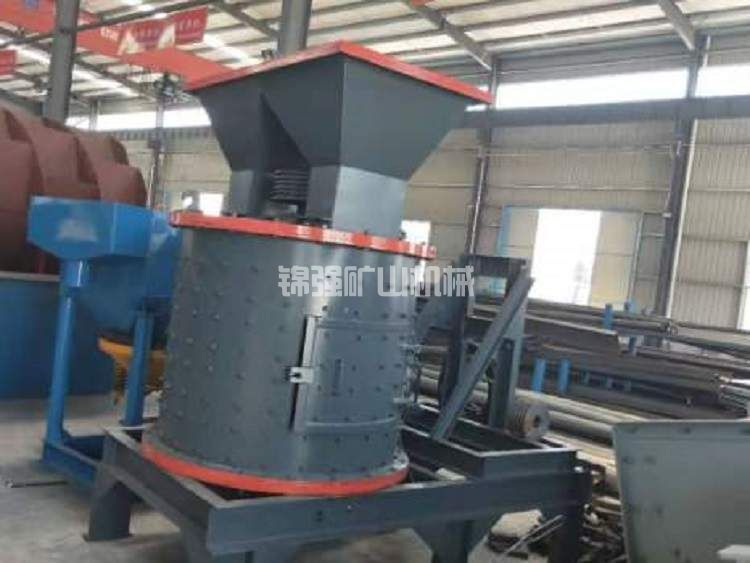

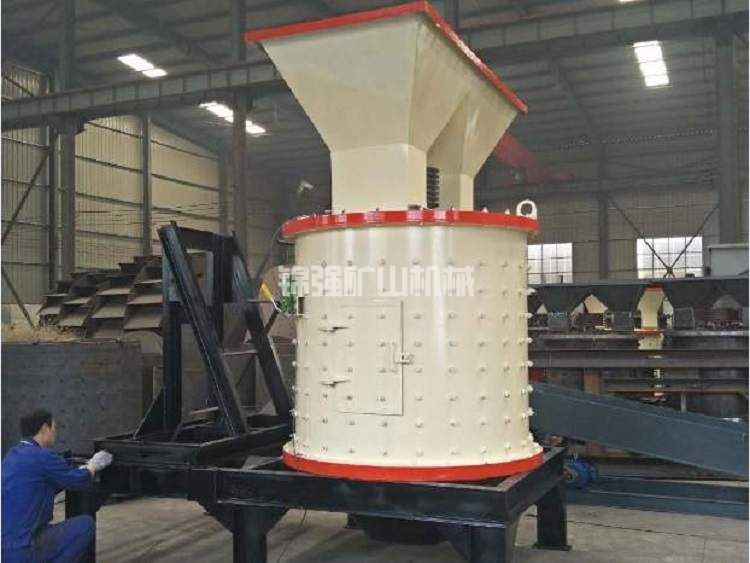

Composite crusher Device image

Composite crusher Equipment

1、 Overview

Vertical composite crusher (composite crusher) is a new type of crushing and precision grinding product that integrates the technical characteristics of similar crushers in various countries around the world, and conducts reliability design and research on key performance parameters. Composite crushers are used to crush concrete dry materials and cement clinker in small and medium-sized chemical plants, providing an ideal crushing machine equipment for chemical plant technical renovation projects or newly created concrete production lines. The vertical composite crusher is also suitable for crushing other harder iron ores such as iron ore sand, slate, gypsum, high coal ash, coal gangue bricks, lump coal, etc. It has the characteristics of high crushing ratio, low energy consumption, stable operation, simple structure, and convenient practical operation and maintenance.

2、 Working principle

The raw materials fall vertically into the high-speed centrifugal impeller from the upper end of the composite breaker. Under the effect of the rapid Centripetal force, they are separated from the raw materials around the centrifugal impeller in an umbrella form to cause rapid collision and breakage. After the raw materials collide with each other, they will collide and rub with each other for several times in the middle of the centrifugal impeller and the housing with raw materials, and then they will be discharged directly from the lower side, The cable digital TV cycle system is generated for several times, and the particle size distribution of finished products is regulated by the screening equipment.

3、 Advantages and characteristics

1. The vertical composite crusher has a large production capacity, high crushing ratio, and low energy consumption; Good airtightness and stable operation; Convenient maintenance and upkeep.

2. The vertical composite crusher has a simple and effective structure, low operating cost, and uses the basic principle of stone crushing, with minimal damage.

3. Jinqiang's design scheme combines plate hammer with high crushing rate, environmental protection and energy conservation, and has the function of crushing and precision grinding.

4. Less harmful to the moisture content of raw materials, with a moisture content of up to 8%; The product is cubic in shape, with a high apparent density and minimal iron pollution.

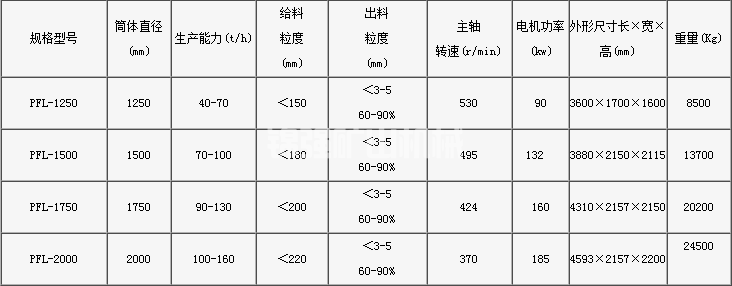

Composite crusher Technical Parameter
